Unity 2D chatper 3--脚本

目录

脚本

新建脚本

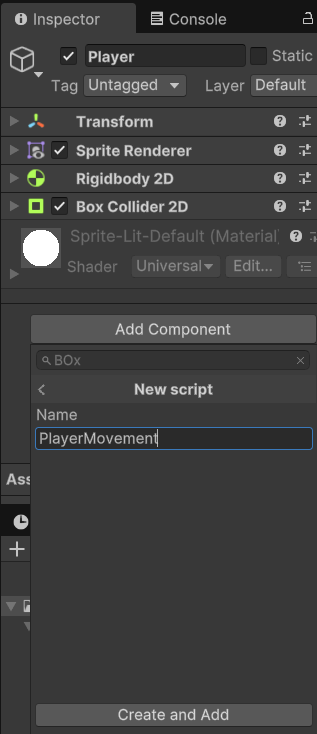

选择对象 > 监视器 > 添加组件

image-20250227101558983

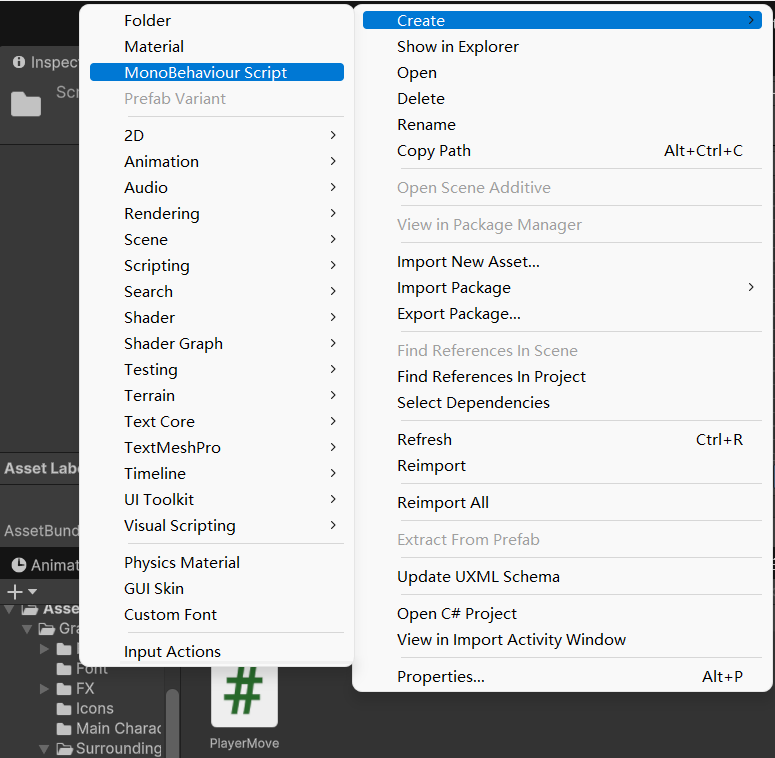

或者在文件夹中新建script文件

image-20250227101841537

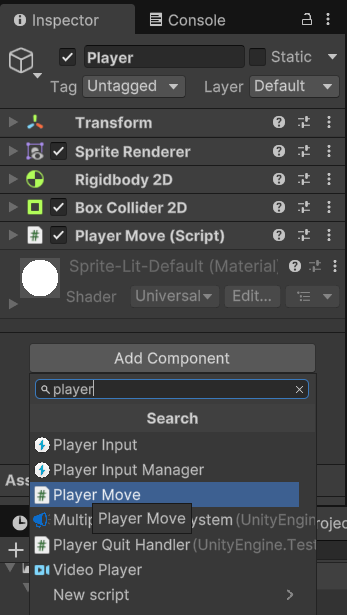

给对象添加组件,选择新建的脚本PlayerMove

image-20250227102017685

功能

移动

获取水平移动输入,提供水平方向速度

public class PlayerMove : MonoBehaviour
{
    private Rigidbody2D rb;
    [SerializeField]private float speed = 5.0f;
    void Start()
    {
        //获取组件
        rb = GetComponent<Rigidbody2D>();
    }
    void Update()
    {
        //获取输入
        var xInput = Input.GetAxis("Horizontal");
        //修改速度
        rb.linearVelocity = new Vector2(xInput * speed, rb.linearVelocity.y);
    }
}

跳跃

默认空格为跳跃键,获取空格输入,水平速度保持不变,获取一个向上的速度

public class PlayerMove : MonoBehaviour
{
    private Rigidbody2D rb;
    [SerializeField]private float speed = 5.0f;
    void Start()
    {
        rb = GetComponent<Rigidbody2D>();
    }
    void Update()
    {
        //Input
        //Input.GetKey(KeyCode.Space)持续监测
        if (Input.GetKeyDown(KeyCode.Space))
        {
            rb.linearVelocity = new Vector2(rb.linearVelocity.x, speed);
        }
    }
}

地面/墙体监测

角色作为父级,创建两个空的子对象WallCheck和GroundCheck

image-20250302231810372

player脚本声明以下成员

[Header("Collision info")]
[SerializeField]private Transform groundCheck;
[SerializeField]private Transform wallCheck;
[SerializeField]private float groundCheckRadius = 0.2f;
[SerializeField]private float wallCheckRadius = 0.2f;
[SerializeField]private LayerMask whatIsGround;

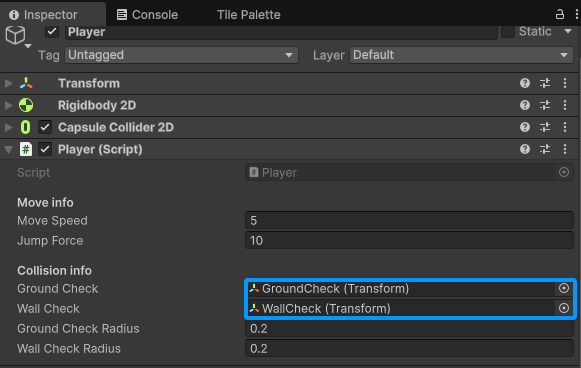

在Inspector中绑定groundCheck和wallCheck

image-20250302232029435

将地面图层设置为Ground(初次使用需要添加图层Ground)

image-20250302233907462

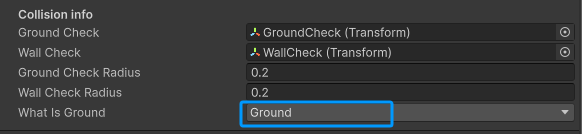

Inspector中将Player的whatIsGround设置为Ground

image-20250302234012920

绘图方法OnDrawGizmos

private void OnDrawGizmos()
{
    //Gizmos.DrawLine(groundCheck.position, new Vector3(groundCheck.position.x, groundCheck.position.y + groundCheckRadius));//向上画线
    Gizmos.DrawLine(groundCheck.position, new Vector3(groundCheck.position.x, groundCheck.position.y - groundCheckRadius));//向下画线
    //Gizmos.DrawLine(wallCheck.position, new Vector3(wallCheck.position.x - wallCheckRadius, wallCheck.position.y));//向左画线
    Gizmos.DrawLine(wallCheck.position, new Vector3(wallCheck.position.x + wallCheckRadius, wallCheck.position.y));//向右画线
}

调整划线的位置直到与地面/墙面接触

image-20250302233700912

player.cs

public bool IsGroundedDetected()
{
    return Physics2D.Raycast(groundCheck.position, Vector2.down, groundCheckRadius, whatIsGround);
}

playerGroundedState.cs

public override void Update()
{
    base.Update();
    //如果人物在地面上,且按下跳跃键,那么切换到跳跃状态
    if (jumpInput && player.IsGroundedDetected())
    {
        stateMachine.ChangeState(player.jumpState);
    }
}

冲刺

player.cs

[Header("Dash info")]
public float dashSpeed = 8f;
public float dashTime = 1f;
public float dashTimer;
public float dashCoolDown = 2f;
public bool isDashCoolDown ;

可以从任意状态转换到dash状态(包括空中)

playerState.cs

protected float stateTimer;
public virtual void Update()
{
    dashInput = Input.GetKeyDown(KeyCode.LeftShift);
    if (player.dashTimer > 0)
        player.dashTimer -= Time.deltaTime;
    else
    {
        player.dashTimer = player.dashCoolDown;
        player.isDashCoolDown = false;
    }
    if(dashInput && !player.isDashCoolDown)
    {
        stateMachine.ChangeState(player.dashState);
    }
}

playerDashState.cs

public override void Enter()
{
    base.Enter();
    player.isDashCoolDown = true;
    //开始计时(冲刺持续时间)
    stateTimer =  player.dashTime;
    //设置dash冷却计时器,冷却时间结束后,可以再次dash
    player.dashTimer = player.dashCoolDown;
}
public override void Update()
{
    base.Update();
    //设置dash速度,冲刺时保持角色y轴不变
    player.SetVelocity(player.facingDir * player.dashSpeed, 0);
    //如果dash时间结束,那么切换到idle状态
    stateTimer -= Time.deltaTime;
    if (stateTimer <= 0)
    {
        stateMachine.ChangeState(player.idleState);
    }
}

动画中添加事件

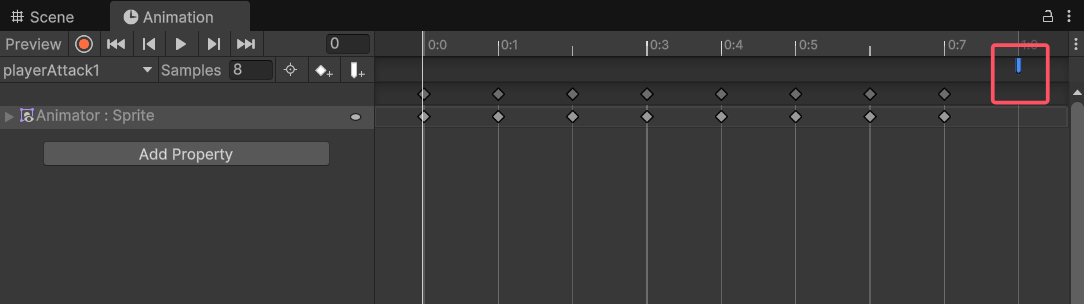

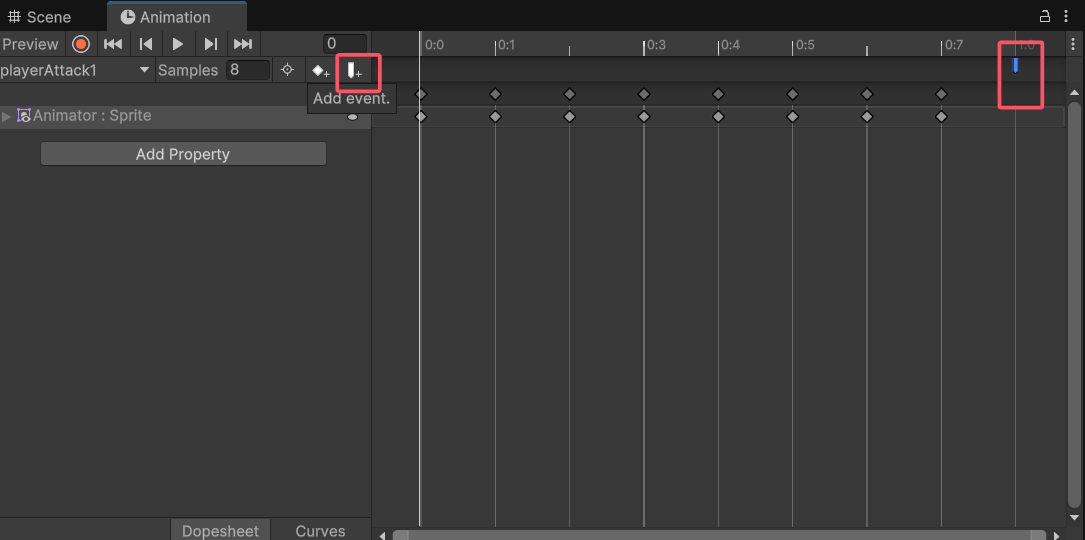

添加事件

image-20250305212601807

Player.cs

public void AnimationTrigger() => stateMachine.currentState.AnimationFinishTrigger();

PlayerState.cs

protected bool triggerCalled;
public virtual void Enter()
{
    triggerCalled = false;
}
public virtual void AnimationFinishTrigger()
{
    triggerCalled = true;
}

PlayerAnimationTriggers.cs

public class PlayerAnimationTriggers : MonoBehaviour
{
    private Player player => GetComponentInParent<Player>();
    private void AnimationTrigger() => player.AnimationTrigger();
}

PlayerAttackState.cs

public override void Update()
{
    //如果触发器被调用(动画播放完毕),那么切换到idle状态
    if (triggerCalled)
    {
        stateMachine.ChangeState(player.idleState);
    }
}

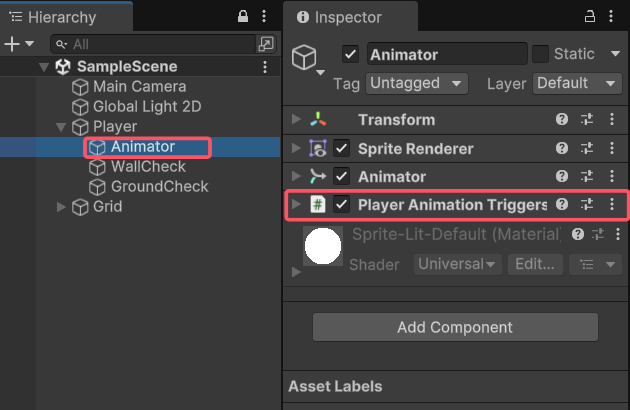

将脚本PlayerAnimationTriggers.cs绑定到Animator上

image-20250305213152028

点击事件查看Inspector

image-20250305213024595

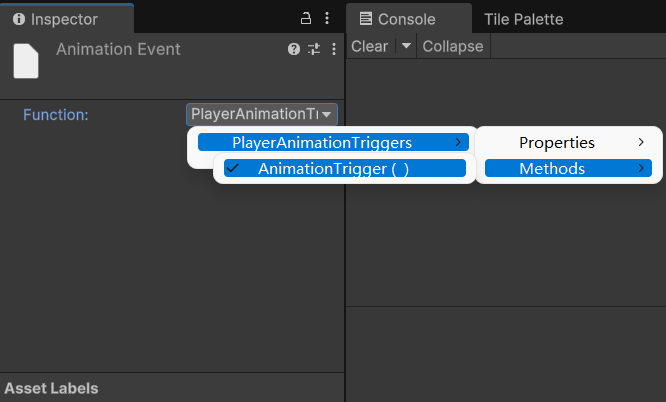

Function > PlayerAnimationTriggers > Methods > AnimationTrigger

image-20250305213058188

同理playerAttack2 ,playerAttack3都要加

保存

有限状态机

工作流程:Player脚本绑定在角色身上,通过Awake和Start函数完成对成员的构造、获取组件以及初始化,通过Update持续监测当前状态(调用PlayerState类/派生类的Update方法)是否需要改变为其他状态(PlayerStateMachine脚本通过ChangeState方法将currentState修改为其他状态)

在PlayerState类的Enter方法中设定将Animator对应的flag设定为true,此时Animator会从Entry转换到某一个clip,然后在Exit方法中设定为false,此时Animator退出当前clip回到默认clip(Idle)

Player

using System;
using UnityEngine;

public class Player : MonoBehaviour
{
    public PlayerStateMachine stateMachine { get; private set; }
    public PlayerIdleState idleState { get; private set; }
    public PlayerMoveState moveState { get; private set; }

    public Rigidbody2D rb { get; private set; }
    public Transform tf { get; private set; }
    public Animator anim { get; private set; }

    public float moveSpeed = 5f;
    private void Awake()
    {
        stateMachine = new PlayerStateMachine();
        idleState = new PlayerIdleState("idle", stateMachine, this);
        moveState = new PlayerMoveState("move", stateMachine, this);
        rb = GetComponent<Rigidbody2D>();
        tf = GetComponent<Transform>();
        anim = GetComponentInChildren<Animator>();
    }
    private void Start()
    {
        stateMachine.Initialize(idleState);
    }
    private void Update()
    {
        stateMachine.currentState.Update();
    }
}

PlayerStateMachine

using UnityEngine;

public class PlayerStateMachine
{
    public PlayerState currentState { get; private set; }

    public void Initialize(PlayerState startState)
    {
        currentState = startState;
        currentState.Enter();
    }
    public void ChangeState(PlayerState newState)
    {
        currentState.Exit();
        currentState = newState;
        currentState.Enter();
    }
}

PlayerState

using UnityEngine;
using System.Collections;

public class PlayerState
{
    protected PlayerStateMachine stateMachine;
    protected Player player;
    private string animBoolName;

    public PlayerState(string animBoolName, PlayerStateMachine stateMachine, Player player)
    {
        this.animBoolName = animBoolName;
        this.stateMachine = stateMachine;
        this.player = player;
    }
    public virtual void Enter()
    {
        player.anim.SetBool(animBoolName, true);
    }
    public virtual void Update()
    {
    }
    public virtual void Exit()
    {
        player.anim.SetBool(animBoolName, false);
    }
}

PlayerIdleState

using UnityEngine;

public class PlayerIdleState : PlayerState
{
    public PlayerIdleState(string animBoolName, PlayerStateMachine stateMachine, Player player) : base(animBoolName, stateMachine, player)
    {
        //调用基类的构造函数
    }

    public override void Enter()
    {
        base.Enter();
    }

    public override void Update()
    {
        base.Update();
        ////跳出状态接口
        if (Input.GetKeyDown(KeyCode.Space))
        {
            stateMachine.ChangeState(player.moveState);
        }
    }

    public override void Exit()
    {
        base.Exit();
    }
}

PlayerMoveState

using UnityEngine;

public class PlayerMoveState : PlayerState
{
    public PlayerMoveState(string animBoolName, PlayerStateMachine stateMachine, Player player) : base(animBoolName, stateMachine, player)
    {
        //调用基类的构造函数
    }

    public override void Enter()
    {
        base.Enter();
    }

    public override void Update()
    {
        base.Update();
        //跳出状态接口
        if (Input.GetKeyDown(KeyCode.Space))
        {
            stateMachine.ChangeState(player.idleState);
        }
    }

    public override void Exit()
    {
        base.Exit();
    }
}

添加其他状态

  1. 设置动画和对应过渡参数(可选)

  2. 一般继承PlayerState,在player.cs中添加对应state公有成员

  3. Awake()中初始化state,如:

    wallSlideState = new PlayerWallSlideState("wallSlide", stateMachine, this);

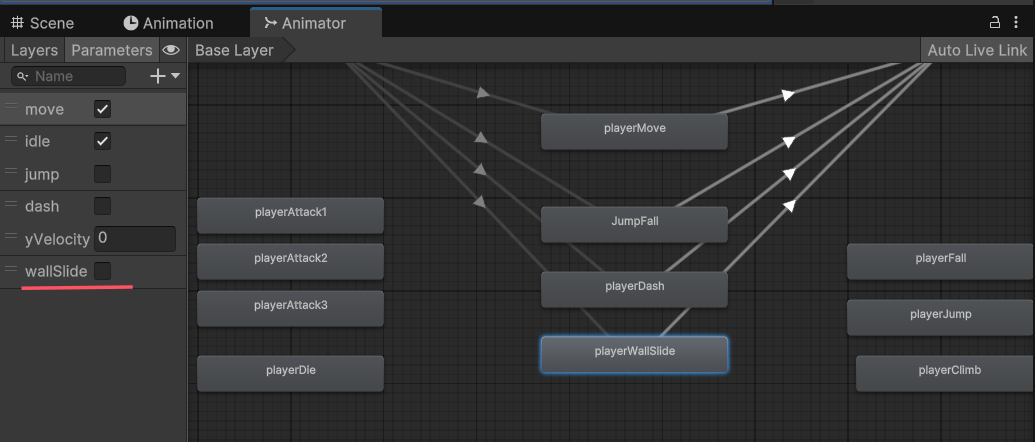

    animBoolName取决于Animator中入口参数

    image-20250305111838009

  4. 考虑哪个状态可以过渡到目标状态,在Update中添加监测条件

    if(player.IsWallDetected() && !player.IsGroundedDetected(1.0f))
    {
        stateMachine.ChangeState(player.wallSlideState);
        //取消当前帧Update后续程序段
        return;
    }


行为树

需要一个良好的支持基础

不然太难用了。。

以下是半成品

using Script.Entity.Enemy.BehaviourTree;
using Script.Entity.Enemy.BehaviourTree.Action;
using Script.Entity.Enemy.BehaviourTree.Condition;

namespace Script.Entity.Enemy.FalseKnight
{
    public class FalseKnightEnemy : Base.Enemy
    {
        private EnemyBtNode root;

        public FalseKnightIdleState IdleState { get; private set; }
        public FalseKnightMoveState MoveState { get; private set; }
        public FalseKnightAttackState AttackState { get; private set; }
        public FalseKnightHitState HitState { get; private set; }

        protected override void Awake()
        {
            base.Awake();
            IdleState = new FalseKnightIdleState("idle", StateMachine, this);
            MoveState = new FalseKnightMoveState("move", StateMachine, this);
            AttackState = new FalseKnightAttackState("attack", StateMachine, this);
            HitState = new FalseKnightHitState("hit", StateMachine, this);
        }

        protected override void Start()
        {
            base.Start();
            StateMachine.Initialize(IdleState);
            BuildBehaviorTree();
        }

        private void BuildBehaviorTree()
        {
            // 创建主选择器
            var mainSelector = new BtSelector();

            // 死亡检查 - 最高优先级
            mainSelector.AddChild(new BtSequence(
                new BtConditionNode(() => isDead),
                new BtChangeStateNode(StateMachine, DeadState)
                ));

            // 受击检查
            mainSelector.AddChild(new BtSequence(
                new BtConditionNode(() => IsKnockedBack),
                new BtChangeStateNode(StateMachine, HitState)
                ));


            // 战斗行为选择器
            var combatSelector = new BtSelector();

            combatSelector.AddChild(new BtSequence(
                new BtConditionNode(() => IsObjectDetected(whatIsPlayer)),
                new BtConditionNode(() => IsObjectInAttackRange(whatIsPlayer)),
                new BtConditionNode(() => StateMachine.CurrentState == AttackState),
                new BtConditionNode(() => !isAttacking), // 攻击动画完成
                new BtConditionNode(() => AttackState.coolDownTimer > 0f),
                new BtChangeStateNode(StateMachine, IdleState)
            ));


            // 攻击序列 - 检测到玩家且在攻击范围内且可以攻击
            combatSelector.AddChild(new BtSequence(
                new BtConditionNode(() => IsObjectDetected(whatIsPlayer)),
                new BtConditionNode(() => IsObjectInAttackRange(whatIsPlayer)),
                new BtConditionNode(() => !isAttacking),
                new BtConditionNode(() => AttackState.coolDownTimer <= 0f),
                new BtChangeStateNode(StateMachine, AttackState)
                ));

            // 追击序列 - 检测到玩家但不在攻击范围内
            combatSelector.AddChild(new BtSequence(
                new BtConditionNode(() => IsObjectDetected(whatIsPlayer)),
                new BtConditionNode(() => !IsObjectInAttackRange(whatIsPlayer)),
                new BtConditionNode(() => !isAttacking),
                new BtConditionNode(() => AttackState.coolDownTimer <= 0f),

                new BtActionNode(() => SetMovingDir(GetObjectDirection())),
                new BtChangeStateNode(StateMachine, MoveState)
                ));


            // 巡逻/空闲行为选择器
            var patrolSelector = new BtSelector();
            // 巡逻移动 - 没有检测到玩家且空闲时间结束
            patrolSelector.AddChild(new BtSequence(
                new BtConditionNode(() => !IsObjectDetected(whatIsPlayer)),
                new BtConditionNode(() => StateMachine.CurrentState == IdleState),
                new BtConditionNode(() => IdleState.StateTimer <= 0f),

                new BtChangeStateNode(StateMachine, MoveState)
            ));

            // 停止巡逻回到空闲
            patrolSelector.AddChild(new BtSequence(
                new BtConditionNode(() => MoveState.StateTimer <= 0f || IsWallDetected() || !IsGroundedDetected()),

                new BtChangeStateNode(StateMachine, IdleState)
            ));

            mainSelector.AddChild(combatSelector);
            mainSelector.AddChild(patrolSelector);
            root = mainSelector;
        }
        protected override void Update()
        {
            base.Update();
            StateMachine.CurrentState.Update();
            root?.Execute();
        }

        public override void SetDead(float time =1f)
        {
            base.SetDead(5f);
        }
    }
}
